The transportable liquid nitrogen quick-freezing machine
  • Wheeled liquid nitrogen quick freezer0

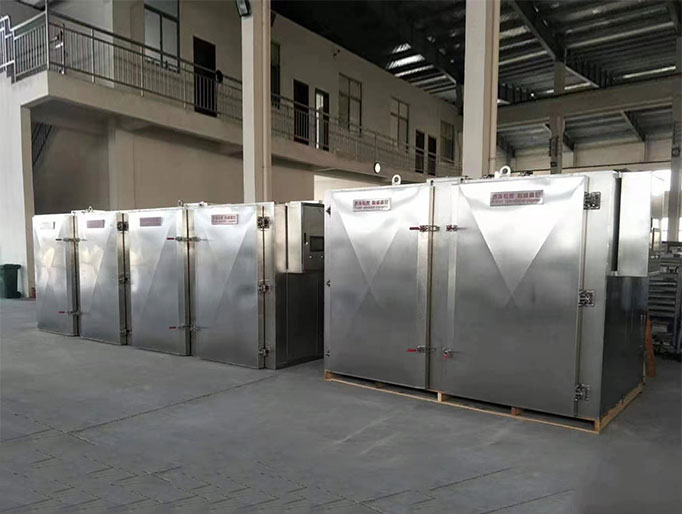

The product name:Wheeled liquid nitrogen quick freezer
Product brand:Cryogenic
Product origin:beijing
返回列表 返回首页

Product overview

Control System:

Microprocessor-based temperature controller, -10~-105can be set freely , controlling precision is1Digital temperature display.

Keyboard lock and password protected configuration page,Delayed start and safe stop interval between restart and being terminated

Audible and visual alarm: High or low temperature alarm, Power failure alarm,  Low battery alarm,Door open alarm, Filter blocking alarm, system failure alarm.

With temperature printer, record 7days data. 72 hour battery back up for printer and controller display.

Power supply: 220V /50Hz 1 phase, can be changed as 220V 60HZ or 110V 50/60HZ.

Structure Design:

Upright/Chest type, Stainless steel interior, outer is painted steel panel, 4units Casters for easy handing. 3units stainless steel shelves for upright type..

Rotatable assistant door handle,Top door with key lock.

Two-times foaming technology, double seal design.155mmextra thickness heat insulation.with VIP+.

Optional: Chart recorder, LN2 back up, storage racks/boxes, Remote alarm system.

Refrigeration System:

Imported Danfoss compressor, Fan electromotor with Germany EBM

Unique refrigeration circulation and unipolar compressor oil-lubricated technology

China Patent technology of mixture refrigerant, which composed of  R134a,R404a,R23,R410A,N2 and so on, CFC free

Certificate: ISO9001, ISO14001,ISO13485
